TMEZ-KC Multi-head embroidery machine

Advantages

Request for demo

Request for prices

General characteristics

i-TM | intelligent - Thread Manager

A world's first ! Automatic thread tension adjustement without skilled operators.

Automatic thread tension adjustement

Higher embroidery quality is achieved by using a digitally controlled thread tension system.

Digitally managed embroidery finish

Finition de la broderie

The optium thread tension can always be obtained to suit the stitch characteristics.
Non-experienced operators can get to work straight away.

Improved production efficiency

Upper thread tension adjustement is done in one setting for all heads.
Saves on the processing for embroidery production, quickly enabling full production.

Achieving a uniform embroidery finish

Atteindre une finition de broderie

Suppresses inconsistency in the finish of all heads, since it enables embroidery with the same uniform upper thread tension.

Fabirc shrinkage is reduced

Réduction du plissage

By supplying the upper thread for the next stitch in advance (advance feeding), the fabric will not crease easily, and a beautiful finish can be obtained.

||||

DCP - Digitally Controlled Presser Foot

DCP-Digitally Controlled presser foot

The height of the presser foot can be set to the material thickness on the operation panel.
The Fabric does not flutter even on hard-to-embroider materials like leather, thick fabric, stretchy fabric and quilting.

User-Friendly Design

In addition to i-TM and DCP, the machine offers a wide variety of operator-friendly functions and options. This reduces operator workload while ensuring high quality embroidery production and smooth machine operation.

Très grand écran tactile pour brodeuse industrielle.

12.1-inch touch panel

The large 12.1-inch operation panel—one of the largest in the industry—features convenient icons and allows you to switch the language used for operating the machine.

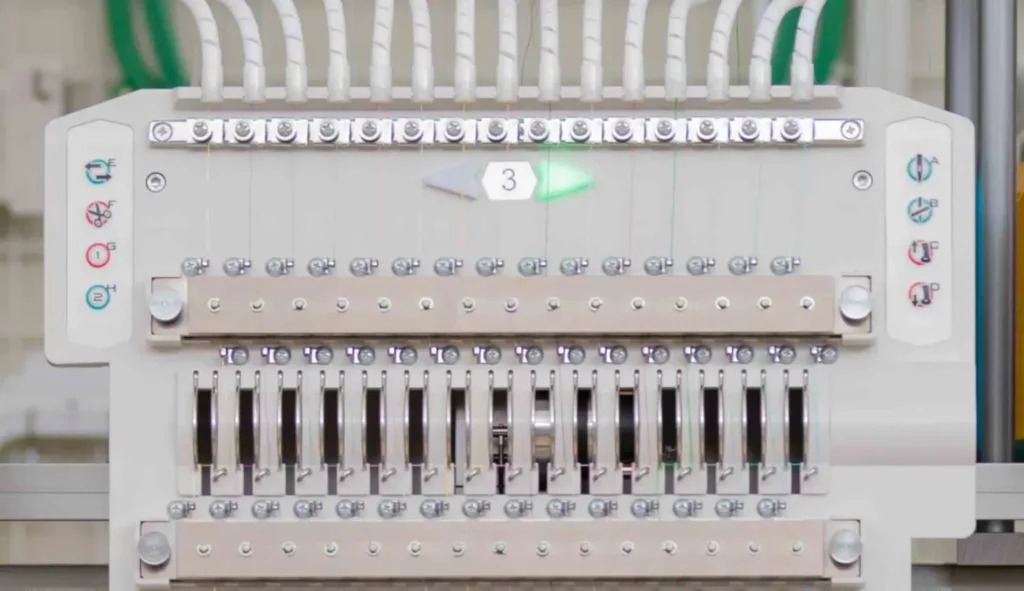

Direct Command Switches

Located on the head, these operation switches provide control of the thread trim and other functions at each tension base for increased production efficiency.

Nouveau système coupe fil pour encore plus d'efficacité !

New auto thread trimming device

Eliminating the picker makes exchanging bobbins easier. It also provides more stable trimming and a 40% improvement over conventional machines in shortening thread tails on the reverse side of the fabric.

Professionnal Embroidery Machine TMEZ-KC

TMEZ-KC machine à broder multi-têtes avec réglage automatique de la tension du fil

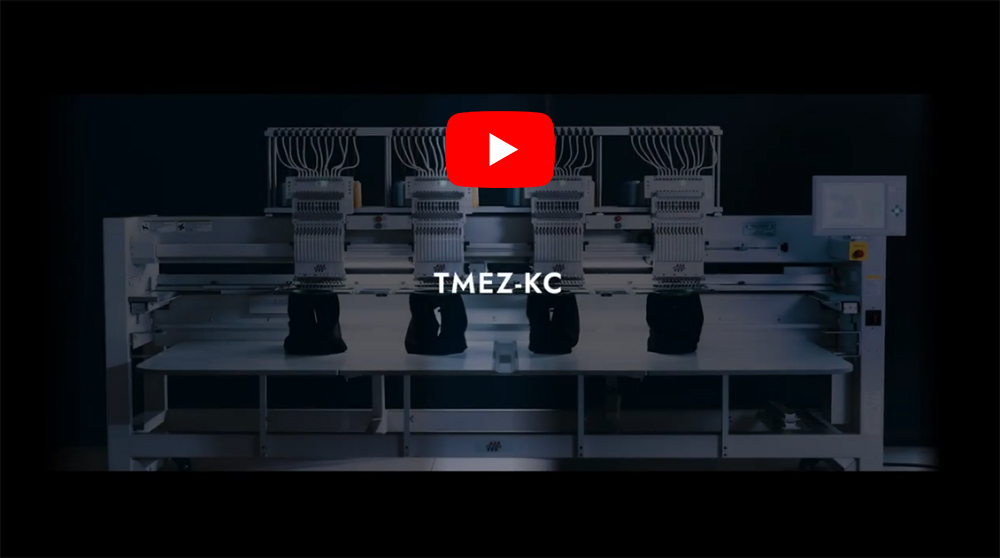

Discover the TMEZ-KC machine in pictures

Presentation of the i-TM automatic tension adjustment system.

TMEZ-KC Product Specifications

2/4/6/8

Multi color heads

1,100rpm

Maximum speed

9/12/15

Needles

760w

Power consumption

360/500㎜

Head interval

TMEZ-KC

Needles	Multi color head	Head interval	Embroidery field （D×W）				Overall Width	Depth	Height
Needles	Multi color head	Head interval	Border Frame	Wide Cap Frame	Semi-wide Cap Frame	Tubular Frame	Overall Width	Depth	Height
9/12/15	2	500	450×500 mm	75×360 mm	83x180 mm	439×419 mm	2 260 mm	1 355 mm	1 730 mm
9/12/15	4	360	450×360 mm	75×360 mm	83x180 mm	439×279 mm	2 560 mm	1 355 mm	1 730 mm
9/12/15	4	500	450×500 mm	75×360 mm	83x180 mm	439×419 mm	3 260 mm	1 355 mm	1 740 mm
9/12/15	6	360	450×360 mm	75×360 mm	83x180 mm	439×279 mm	3 280 mm	1 355 mm	1 740 mm
9/12/15	6	500	450×500 mm	75×360 mm	83x180 mm	439×419 mm	4 260 mm	1 355 mm	1 740 mm
9/12/15	8	360	450×360 mm	75×360 mm	83x180 mm	439×279 mm	4 000 mm	1 355 mm	1 740 mm
9/12/15	8	500	450×500 mm	75×360 mm	83x180 mm	439×419 mm	5 260 mm	1 355 mm	1 740 mm

*Power supply
　3-phase　200V　50/60Hz
　Single-phase　100V/ 200V　50/60Hz
*Contact us for other specifications and more details.
*The actual embroidery field and embroidery speed may vary depending on the items being produced, the machine model, and the embroidering conditions.
