TMCP industrial embroidery Machine Multi-head Flat

Advantages

Request for demo

Request for prices

General characteristics

Direct command switch

Various operation switches and multi-color LEDs are located on each tension base. Since all the main functions of the operation panel can be manipulated at each head, operator work efficiency has been improved. Commonly used functions may be assigned to the custom switches.

Touches de commande directe

FS mode to expand material variations

FS Mode dramaticcally improves the quality of embroidery done with thick or soft-twisted thread taht was unsuitable for embroidery machines in the past.

Options for more beautiful embroidery of soft-twisted thread.
The rotation speed is limited when using the FS mode.

FS Mode-2

New Sequin Device ESQ-C

Only available for TMCR-VF multi-head embroidery machine flat type.
After simplifying the complicated application of sequins on a large scale, quality improvement and the minimizing of adjustment time has been realized. It has become much easier to change the type and size of sequin at will. The linked bead attachment can also be added.

Supported Sequin size : 3mm dia to 9mm dia. front hole eccentric sequins
Sold separately : 2mm size attachment, Beads device attachment

The TMCP-VF series offers standard multi-head flat type machines with basic functions. It is suited for factories that embroider on fabrics and parts before sewing, such as large-lot apparel products.

“TMCP-VF” Multi-head Flat Type Standard Model

The TMCP-VF series offers standard multi-head flat type machines with basic functions.
It is suited for factories that embroider on fabrics and parts before sewing, such as large-lot apparel products.

User-Friendly Design

This machine offers a wide variety of operator-friendly functions and options. This reduces operator workload while ensuring high quality embroidery production and smooth machine operation.

embroidery machine /Direct Command Switches

Located on the head, these operation switches provide control of the thread trim and other functions on each tension base for increased production efficiency.

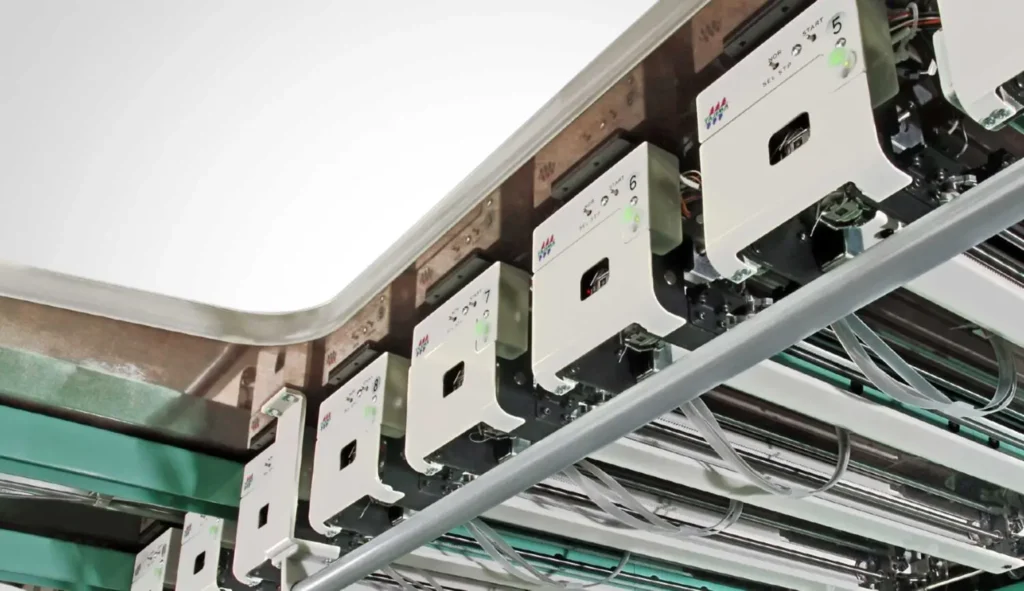

Bobbin Changer (Optional)

Up to three bobbins can be pre-staged for replacement. This reduces the work in changing threads makes extended embroidery operations more efficient.

Broderie fine avec le mode FS pour machine à broder industrielle

FS Mode

Stabilizes stitching for high-quality embroidery, even with threads that are difficult to work with, such as thicker or loosely twisted threads.

TMCP-VF Product Specifications

4/12/15/18/20

Multi color heads

1,100rpm

Maximum speed

6/9/12

Needles

1.2kw

Power consumption

200-400㎜

Head interval

30㎜

Overlap of heads when using continuous pattern

TMCP-VF

Model	Needles	Multi color head	Head interval	Embroidery field (D×W)	Overall Width	Depth	Height
TMCP-V0620FD	6	20	200D (W)	550×200(400) mm	5 365 mm	1 610 mm	1 635 mm
TMCP-V0912FS	9	12	345S	680x345 mm	5 455 mm	1 820 mm	1 635 mm
TMCP-V0918FS	9	18	400S	800×400 mm	8 565 mm	2 080 mm	1 635 mm
TMCP-V0920FS	9	20	330S	680×330 mm	7 915 mm	1 820 mm	1 635 mm
TMCP-V1204FS	12	4	400S	680×400 mm	2 865 mm	1 820 mm	1 535 mm
TMCP-V1212FS	12	12	345S	680×345 mm	5 455 mm	1 820 mm	1 635 mm
TMCP-V1215FS	12	15	400S	680×400 mm	7 355 mm	1 820 mm	1 635 mm

*Power supply
　3-phase　 200 – 240 / 380 / 415V　50/60Hz
　Single-phase　200 – 240V　50/60Hz
*Contact us for other specifications and more details.
*The actual embroidery field and embroidery speed may vary depending on the items being produced, the machine model, and the embroidering conditions.
