TMAR-VC Industrial embroidery machine

Advantages

Request for demo

Request for prices

General characteristics

Digitally Controlled Presser foot DCP

By digitally controlling fabric pressing, the DCP can be set to the thickness of the fabric so as not to over press the material causing shadows or damage.
Also, by optimizing the timing of fabric pressing, the DCP can suppress the "fluttering" of the embroidery material, beautifully finishing precision embroidery. The DCP is very effective for hard-to-embroider materials like leather, thick fabric, stretchy fabric and quilting.

Direct Command Switch

Various operation switches and multi-color LEDs are located on the each head.

Various operation switches

Since ail of the main functions of the operation panel can be manipulated from each head, the working efficiency of operators has been improved. Commonly used functions may be assigned to the custom switches. (Scheduled for 2016)

Major boost of cap embroidery turnout

Développement important du cadre casquette

Major boost of cap embroidery turnout The newly designed "Cap frame 2" has enhanced the embroidery stability whereby incresing the maximum rotational speed to 1000 rpm.
(900 rpm for +4mm)

Others

Enfilage simplifié du guide

Snap-Fit type Middle Thread Guide
- Easy threading
- Easy adjustment
- Easy exchange

Tubular Frame
Touch Screen Operation Panel

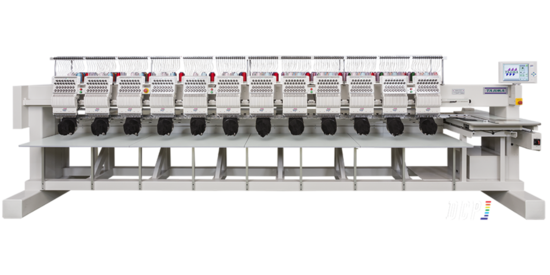

Exclusively designed for embroidery on caps and the tubular application, the TMAR-VC multi-head embroidery machine by Tajima is a large production model
with 12 heads.

Industrial embroidery machine TMAR-VC

To craft embroidery down to the the finest detail, TMAR-VC boasts an innovative system known as the ‘DCP feature’ with the inclusion of a presser foot which is controlled digitally from a touch screen operation panel and which enables users to adjust the position from bottom dead centre position as well as the strength of each needle to be adjusted independently.

The stitching strength is thereby configured in accordance with the type of material, which ensures there is no movement of the material and this leads to considerably fewer thread breaks when starting the machine. The independent presser foot allows for ultra precise embroidery on materials such as leather, thick or very fine and even delicate fabrics, layered materials and embroidery with foam for a 3D effect on caps.
Significant changes have been made to the cap frame. It has been reinforced, therefore improving the stability of the embroidery, and also now boasts a potential rotation speed of 1,000 rpm (compared to 900 rpm previously).

Several direct command switches have been placed on each head, giving access to all of the main features: work efficiency is optimised for users, less movement is required.

Other features provide a finishing touch to the TMAR-VC machine include: simplified threading of the middle thread guide (simplified threading, easy adjustments, fast operation), a touch screen operation panel and tubular frames.

Various tools are available as optional extras: a position marker, an automatic lubrification system, a beam sensor and LED lighting.

Various types of frames can be fitted to this machine, depending on your needs: tubular frames of different sizes to match your products (for embroidery on t-shirts, sweatshirts and jackets), the reinforced cap frame ‘’2’’ for improved stability.

TMAR-VC Product Specifications

Multi color heads

1,100rpm

Maximum speed

12/15

Needles

700w

Power consumption

360㎜

Head interval

TMAR-VC

Model	Needles	Multi color head	Head interval	Embroidery field (D×W)				Overall Width	Depth	Height
Model	Needles	Multi color head	Head interval	Border Frame	Wide Cap Frame	Semi-wide Cap Frame	Tubular Frame	Overall Width	Depth	Height
Tubular Frame　spec.	12/15	12	360	450×360 mm	75×360 mm	83x180 mm	439×279 mm	5 660 mm	1 480 mm	1 705 mm
Border frame spec.	12/15	12	360	450×360 mm	75×360 mm	83x180 mm	439×279 mm	5 820 mm	1 780 mm	1 705 mm
