Electronic embroidery machine by Tajima - TMBR2-SC professionnal machine

Advantages

Request for demo

Request for prices

General characteristics

Touch screen and great memory capacity

Grand écran tactile de 12,1 pouces The large-scale 12.1 inch opération panel is equipped with various convient icons and multilingual displays. A touch panel allows more intuitive operation.

Greatly increased memory capacity!
Maximum design storage

Nombre maximal de points
200 designs --> 650 designs

Maximum stitch count

Nombre maximal de points
2 million --> 4 million

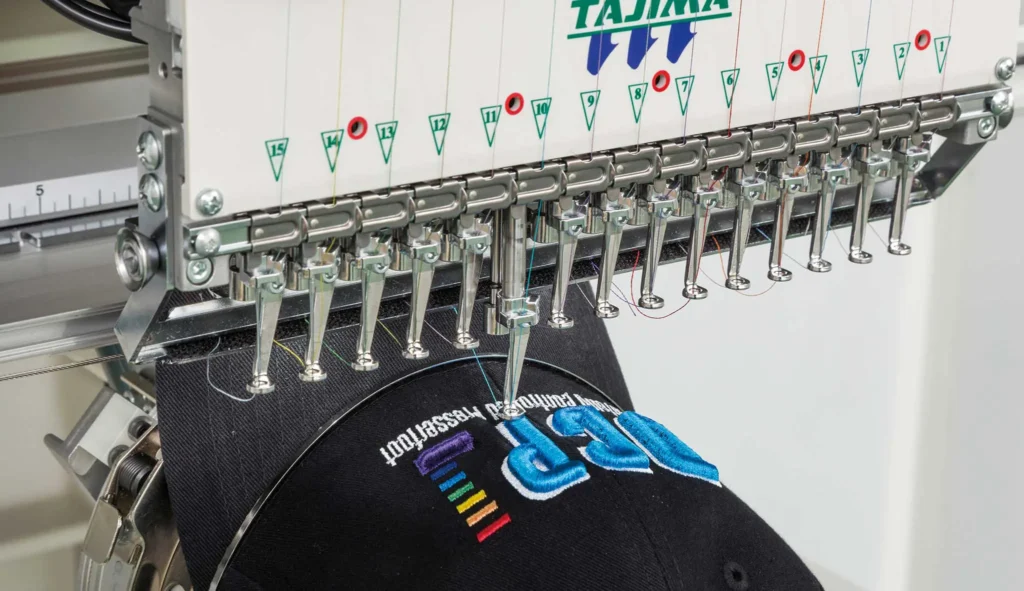

Equipped with an automatic presser foot, "DCP"

Fonction pied presseur pour machine à broder industrielle , Magnifiquement brodé sur du cuir et des matériaux épais.

A digitally controlled presser foot that responds to changes of fabric thickness stitch. Accurate and beautiful embroidery from thin to 3D embroidery with no settings required. The Machine reduces a fluttering of the fabric at the start sewing and during thread trimming, minimizing problems such as skip stitch and thread trimming failure.

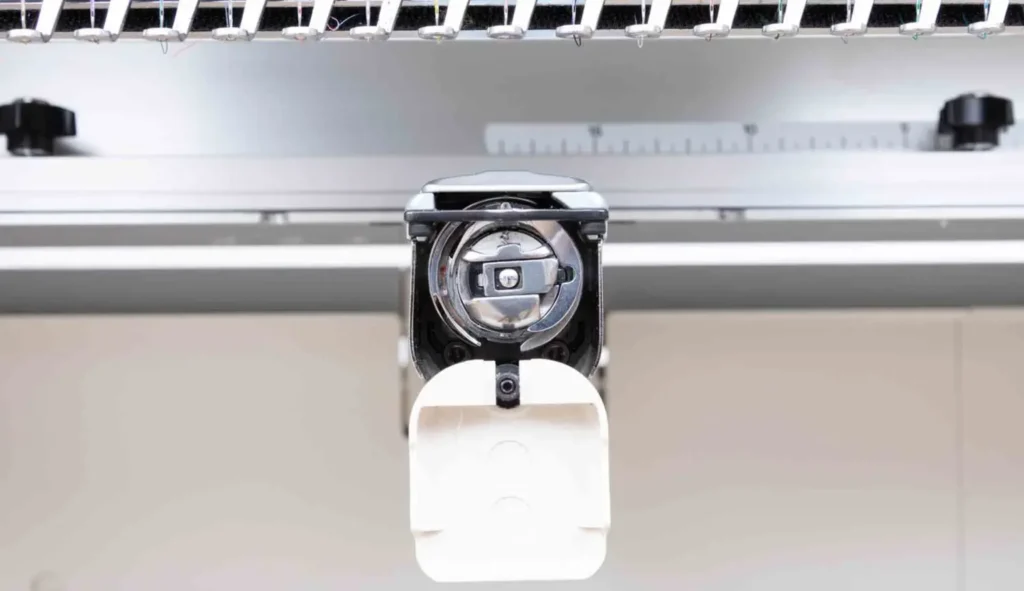

Thread trimming device and cylinder structure

Nouveau système coupe fil pour encore plus d'efficacité !

The system was revised and the amount of thread tall remaining on the back of the fabric after thread trimming has been reduced by approximately 40%.The picker free mechanism simplifies bobbin replacement. In addition, the rotary hook cover has been improved to eliminate the clearance for the picker, minimizing the risk of snagging.

Design position adjustment function

Fonction de réglage de la position du dessin.

By setting any two points, even if fabric patterns are slanted when framing, you can be correct that on the opération panel.

Fonction ajustement de la position — Alignement avec une broderie facilité

Enhanced cap frame structure

Cadre casquette sur brodeuse Tajima TMBP2-SC A strong support shaft is installed in the center of the cap frame to eliminate vibration of the drive unit, achieving stable sewing and improved sewing speed.

"FS MODE"

Broderie fine avec le mode FS pour machine à broder industrielle

Reduced thread tension. Stability and embroidery quality are improved. The 'fine stitch' mode makes it easier to embroider with thread that is difficult to use on standard embroidery machines.

Network

Transfert de donnée sur réseau Embroidery data can be easily sent to machines by connecting the embroidery software to a network.

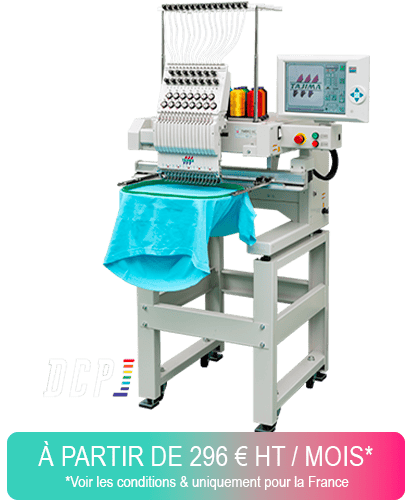

Electronic embroidery single-head machine TMBR2-SC

Precise and varied embroidery

with a wide variety of frames

to meet the demands of the market.

Precise and varied embroidery

with a wide variety of frames

to meet the demands of the market.

“TMBR2-SC”Embroidery Machines Single-head Cylinder Type High-end Model

TMBR2-SC Product Specifications

Multi color heads

160w

Power consumption

6/12/15/18

Needles

95kg

Machine Weight

1,200rpm

Maximum speed

TMBR2-SC

Champ de broderie (PxL)						Width	Overall Width	Depth	Height
Needles	Border Frame	Wide Cap Frame	Semi-wide Cap Frame	Tubular Frame	Pocket Frame
6/12/15/18	360x500 mm	75x360 mm	83x180 mm	360 x500 mm	1 - 45x80 mm 2 - 80x55 mm	1030 mm	1205 mm	770 mm	977 mm
