The large 12.1‑inch control panel, one of the largest in the industry, features convenient icons and allows you to change the machine’s operating language
Tajima PAX | HAR | PAR SERIES
Tajima PAX SERIES
Tajima PAX embroidery machine is able to sew, embroider and perforate leather, suede, alcantara and laminated skins. It is equipped with a normal embroidery head and a special punching head to perforate the materials deposited on the frame. It is equipped with punches of different diameter.
The Tajima PAX is a versatile multi-head machine designed specifically for the following sectors :
- shoe,
- leather,
- automotive,
- interior design.
It combines a robust embroidery head with a special punching head able to cutt and pierce any type of leather without leaving traces of dirt or burns generally released by laser technology.
PAX Product Specifications
PAX
| Model | P-head Perforation | H-head Sewing, Embroidery | Heads | Needles | Work field （D×W） |
| PAX-V0901F | 1 | 9 | 550×500S(240) mm | ||
| 1 | 9 | 750×800S(240) mm | |||
| 1 | 9 | 1 000×1 200S(240) mm | |||
| PAX-V0902FB | 2 | 9 | 1 000×800S(240) mm | ||
| 2 | 9 | 1 200×800S(240) mm | |||
| PAX-V0904F | 4 | 9 | 1 000×600S(240) mm | ||
| 4 | 9 | 1 200×600S(240) mm |
*Maximum speed 1 100 tr/min
*Power supply
3-phase 200-240/350/380/400/415/440V 50/60Hz
Single-phase 200-240V 50/60Hz
*Power consumption Max.820w
*Embroidery speed varies depending on specifications, embroidery field,
and conditions of use (frame type, especially whether a frame is used or not, material, thread type, etc.).
Please contact your distributor for details.

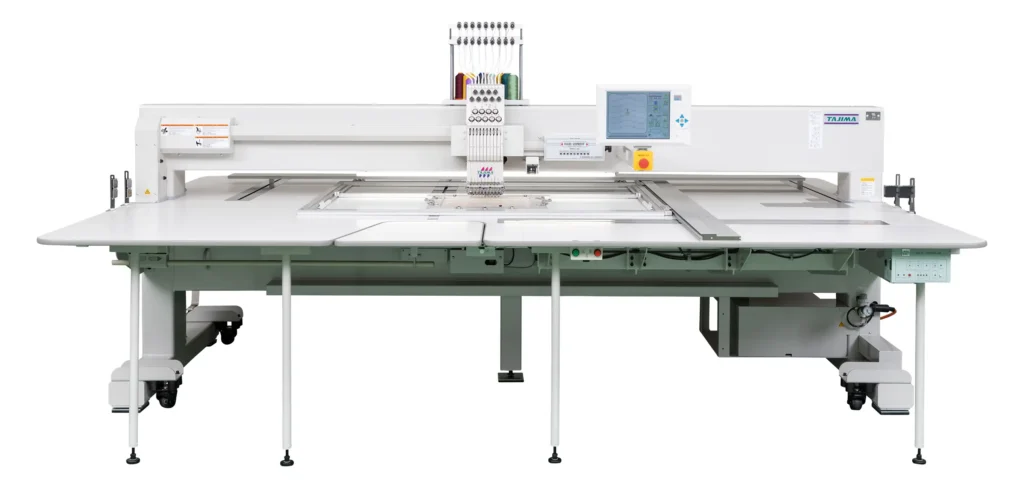

HAR – Sew and embroider on one machine.
High-quality multi-color stitching and embroidery on one machine; one head handles up to 9 colors. The machine can be used for seats and interiors of automobiles, cabin cruisers, and private jets as well as for interior design, fashion accessories, and leathercraft.
Mass production of multi-colored, vibrant designs with multiple heads
The “9 colors x 8 heads” system enables the simultaneous production of up to 8 products in a variety of styles. The sewing field is 1,000 mm (40 inches) (D) x 1,200 mm (48 inches) (W), making it possible to handle large products such as car seats and furniture, as well as a wide range of designs.
Combined with PAR, a machine specialized for perforation, it can create high-precision hole punching and quilt lines with minimal downtime.
HAR Product Specifications
HAR
| Model | H-head Sewing, Embroidery | Needles | Work field （D×W） |
| HAR-V0901F | 1 | 9 | 750×800S mm |
| 1 000×1 200S mm | |||
| HAR-V0902F | 2 | 9 | 750×800S mm |
| 1 000×1 200S mm |
*Maximum speed 1 100tr/min
*Power supply
3-phase 200-240/350/380/400/415/440V 50/60Hz
Single-phase 200-240V 50/60Hz
*Power consumption Max.820w
*Embroidery speed varies depending on specifications, embroidery field,
and conditions of use (frame type, especially whether a frame is used or not, material, thread type, etc.).
Please contact your distributor for details.

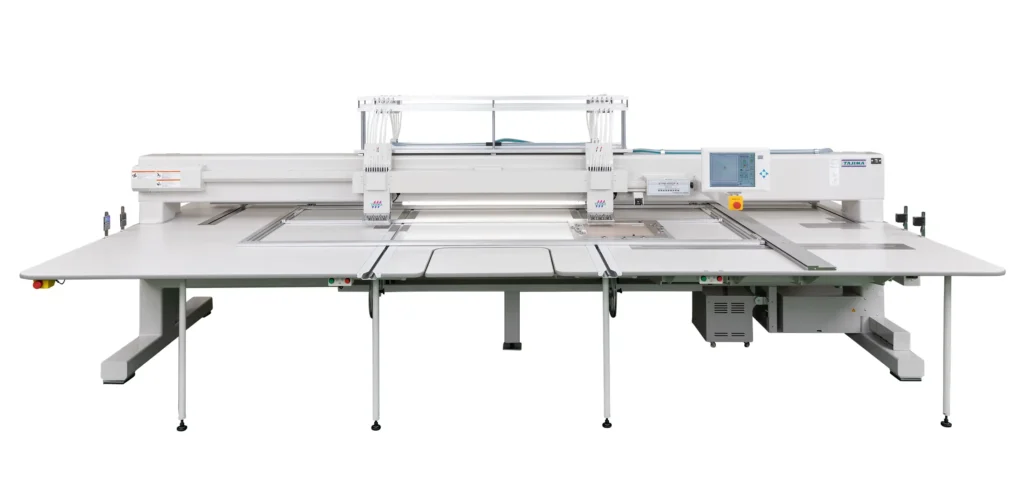

PAR – the Specialized Industrial Perforation Machine
This machine achieves unprecedented beauty in dot design. The result is a combination of ventilation and excellent design. The machine can be used for seats and interiors of automobiles, cabin cruisers, and private jets as well as for interior design, fashion accessories, and leathercraft.
Expresses fine design with 0.1mm accuracy
The technology of industrial embroidery machines enables punching with an accuracy of 0.1mm. The dregs are sucked out by air to minimize clogging. The wide processing field of up to 1,000 mm (40 inches) (D) x 1,200 mm (48 inches) (W), enables processing of large products such as car seats and furniture, as well as a wide range of designs.
Combined with HAR, a multi-function sewing machine specialized for multi-color sewing and embroidery, it can create high-precision hole punching and quilt lines with minimal downtime.
PAR Product Specifications
PAR
| Model | P-head Perforation | Needles | Work field （D×W） |
| PAX-V0901F | 1 | 9 | 750×800S mm |
| PAX-V0902FB | 2 | 750×800S mm | |
| PAX-V0904F | 1 000×1 200S mm |
*Maximum speed 1 100tr/min
*Power supply
3-phase 200-240/350/380/400/415/440V 50/60Hz
Single-phase 200-240V 50/60Hz
*Power consumption Max.820w
*Embroidery speed varies depending on specifications, embroidery field,
and conditions of use (frame type, especially whether a frame is used or not, material, thread type, etc.).
Please contact your distributor for details.
Tajima DG-S software: Maximize Design Reproducibility with Exclusive Software and Perforator Needles
Committing the designer’s imagination—just as it is—to data
“DG-S” design creation software can convert Illustrator and CAD data into perforation and sewing data, allowing designers to create patterns without limiting their imagination.
Furthermore, creating patterns from data significantly reduces the cost and time that would be required for conventional mold manufacturing. It can also be adapted to small-lot production, where greater variety is required.
- DG-S design creation software is optional.
- Creation of embroidery data requires separate embroidery data software.
Create various designs with perforator needles of different sizes
Using a special angle gauge, you can accurately mount the perforator needles at the correct angle. You can also attach multiple needles at different angles to expand the variety of designs, for example, with motifs expressing rotation.
The embroidery design to be transmitted to the machine can be created using the Taijma DG-S punching software, standard for this model, thanks to which it is possible to create an unlimited number of patterns and designs and convert the data in Illustrator and/or CAD into punching or sewing. This software makes it possible to modify every single stitch or the position of every single hole in order to optimise the final result.
