“TLMX” Lock-Stitch Chenille Taping & Coiling Embroidery Machines
The TLMX series of lock-stitch chenille embroidery machines can sew and secure strip materials such as cord and tape. They can handle special embroidery processes such as cording, taping, zigzag swing stitching, and coiling.
The technology for sewing and securing cords has expanded to other fields such as apparel, automobiles, and housing. These machines are suited to a wide range of applications, from decorative to functional embroidery.
Create Splendid Embroidery Arrangements with Cord or Tape Materials
These machines incorporate a number of cutting-edge technologies for reliable sewing with many different materials. The high-speed rotation enables more stable sewing. A wide variety of embroidery arrangements can be made using cord and tape materials.
Taping Embroidery
Use the standard and optional guides to sew all kinds of tape materials.
Zigzag Swing Stitching
Use the using zigzag swing attachment to swing the zigzag lever from side to side above the material while sewing. Works with thin materials, extra-thick materials, sequin materials, and other decorative materials.
Coiling Embroidery
3 kinds of materials are used: embroidery thread, core thread, and coiling thread. Core thread is stitched while it is wound by coiling thread.
User-Friendly Design
High-speed rotation up to 1,000 rpm
The machines achieve high speed rotation of up to 1,000 rpm for tape and zigzag stitching and up to 500 rpm for coiling.
Easily replaceable attachments
Attachments for taping, coiling, and zigzag stitching can be easily replaced with a single screw.
Attachments improve productivity
The double bobbin attachment enables sewing and taping to be performed at the same time.
Swing interval optimized for the particular materials
The zigzag swing interval can be set to a maximum of 16 mm. Rotating the M-axis as well (Zigzag Swing Assist; Pat. Pend.) produces a beautiful finish.
Adjustable N-Pipe stroke for different materials
The bottom dead center position is freely adjustable to accommodate beaded cords and other special materials.
Automatic retraction function enhances efficiency
The N-Pipe and presser foot automatically retract when embroidering is finished. This facilitates work when changing fabrics and switching frames.
TLMX Product Specifications
TLMX Mixed Type

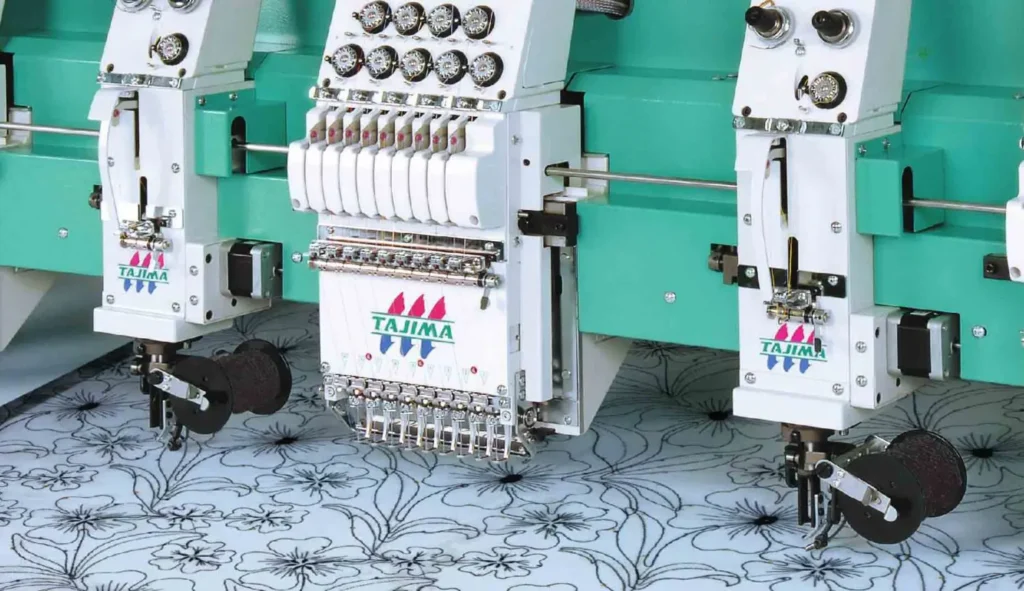

A mixed type, integrating lock-stitch chenille embroidery heads and standard embroidery heads in pairs.
TLMX Triple Mix Type

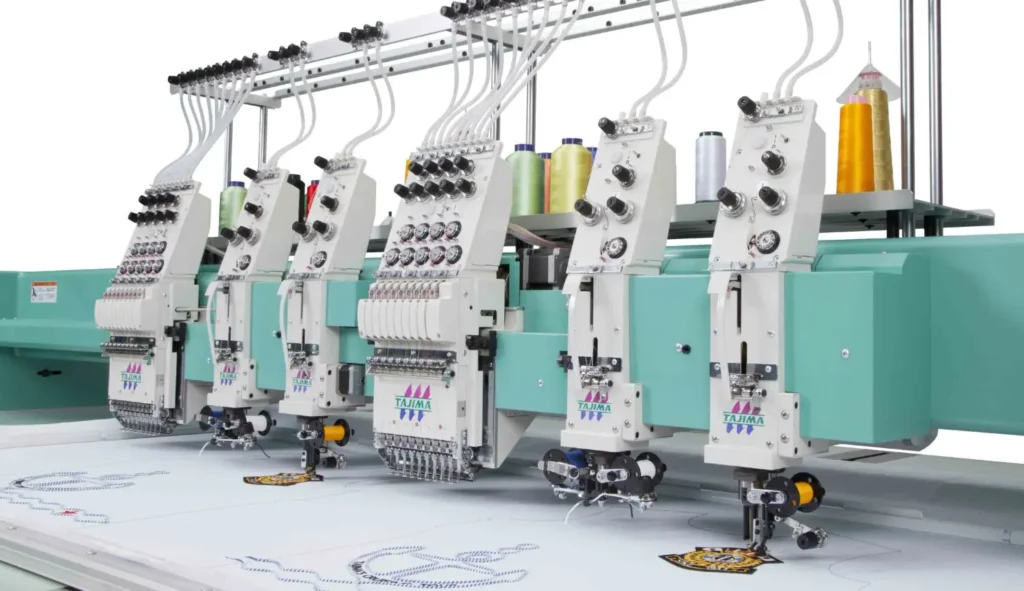

The triple mixed type joins two lock-stitch chenille embroidery heads and a standard embroidery head.
TLMX 100/T00 Type
The 100 series uses lock-stitch chenille embroidery heads exclusively.
TLMX Mix Type/Triple Mix Type
TLMX Mix type/ Triple Mix Type
| Model | Multicolor heads Needles | Lock-stitch chenille heads | Multi color heads | Head interval | Embroidery field (D×W) | Embroidery field （Continuous） | Overall Width | Depth | Height | |
| TLMX-904 | 9 | 4 | 4 | 550 | 680×550(230) mm | 2 200 mm | 4 045 mm | 1 800 mm | 1 540 mm | |
| TLMX-915 | 9 | 15 | 15 | 550 | 850×550(230) mm | 8 250 mm | 10 295 mm | 2 140 mm | 1 730 mm | |
| 9 | 15 | 15 | 550 | 1 000×550(230) mm | 8 250 mm | 10 295 mm | 2 440 mm | 1 730 mm | ||
| 9 | 15 | 15 | 550 | 1 200×550(230) mm | 8 250 mm | 10 295 mm | 2 840 mm | 1 730 mm | ||
| 9 | 15 | 15 | 550 | 1 500×550(230) mm | 8 250 mm | 10 295 mm | 3 440 mm | 1 730 mm | ||
| TLMX-1201 | 12 | 1 | 1 | 645 | 680×645(290) mm | 645 mm | 2 700 mm | 1 790 mm | 1 540 mm | |
| TLMX-1202 | 12 | 2 | 2 | 645 | 680×645(290) mm | 1 290 mm | 3 345 mm | 1 790 mm | 1 540 mm | |
| 12 | 2 | 2 | 645 | 1 200×645(290) mm | 1 290 mm | 3 345 mm | 2 830 mm | 1 540 mm | ||
| TLMX-T0908 | 9 | 8x2 | 8 | 745 | 1 200×745(425) mm | 5 960 mm | 8 570 mm | 2 840 mm | 1 630 mm | |
| TLMX-T1204 | 12 | 4x2 | 4 | 840 | 1 200×840(485) mm | 3 360 mm | 6 210 mm | 2 840 mm | 1 630 mm | |
*Stitch length 0.1-12.7mm
*Maximum speed
Standard heads Standard embroidery Max.1,000rpm
Lock-stitch chenille heads Taping / Zigzag swing stitch embroidery Max.1,000rpm Coiling embroidery Max.500rpm
*Power supply
3-phase 200-240 / 350 / 380 / 400 / 415 / 440V 50/60Hz
*Power consumption 2.1kw
*Contact us for other specifications and more details.
*The actual embroidery field and embroidery speed may vary depending on the items being produced, the machine model, and the embroidering conditions.
Sequin Device
Seed Beads Device
Beam Sensor
Bobbin Changer（Only Mix Type）
AFC
TLMX 100
TLMX 100
| Model | Lock-stitch chenille heads | Head interval | Embroidery field (D×W) | Embroidery field （Continuous） | Overall Width | Depth | Height | |
| TLMX-112 | 12 | 500 | 1 200×500 mm | 6 000 mm | 7 450 mm | 2 840 mm | 1 630 mm | |
*Stitch length 0.1-12.7mm
*Maximum speed
Lock-stitch chenille heads Taping / Zigzag swing stitch embroidery Max.1,000rpm Coiling embroidery Max.500rpm
*Power supply
3-phase 200-240 / 350 / 380 / 400 / 415 / 440V 50/60Hz
*Power consumption 1.9kw
*Contact us for other specifications and more details.
*The actual embroidery field and embroidery speed may vary depending on the items being produced, the machine model, and the embroidering conditions.
Bobbin Changer
Beam Sensor
